Monitor the energy production and consumption of your house by connecting directly to your SMA equipment via your home network.
Use your SMA Energy Meter or Home Manager 2 as a smart meter in Homey Energy. Take action when you have a surplus (exporting energy). Report your energy production to PVOutput.org.
Supported devices
- Inverters
- Hybrid/Batteri inverters
- Energy Meter (incl. Home Manager 2)
- Energy Summary
Ambition is to support all inverters manufactured by SMA, including the new Smart Energy hybrid inverters.

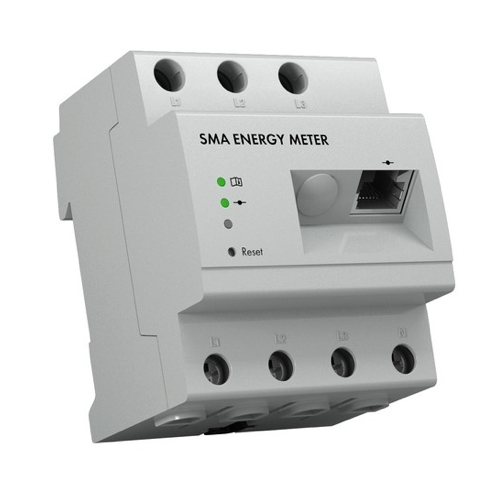

Energy Meter
The Energy Meter device type supports both the Energy Meter and the Home Manager 2.0 products. Both products generate the same multicast datagrams required to access the built-in meter information.
This device type will be recognized in Homey as a smart meter and visualized properly on the energy tab.
Energy Summary
The Energy Summary is a virtual device that gathers information from inverter and energy meter devices registered in your Homey. It will only display information from inverters and energy meter devices from this app. It shows four values; PV Power, Grid Power, Battery Power, and Consumption.
PVOutput
Report your inverter(s) status to PVOutput.org.
For more information about the app and the possibility to get support please visit the forum link in the section below.
Click on a device above to show related Flow cards only.
When...

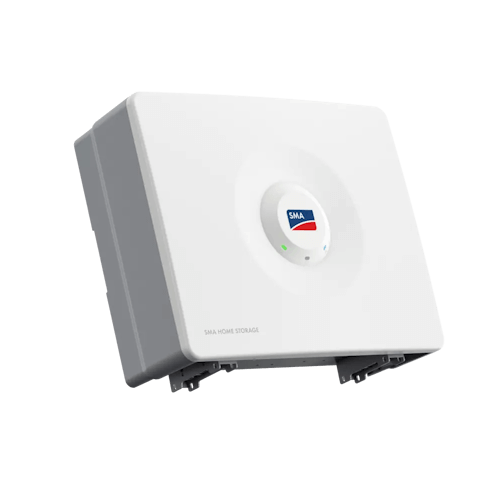

Battery
The battery level changed
Battery
The power changed
Battery
The voltage changed
Battery
The electric current changed
Battery
The battery charging state changed ...
Battery
The temperature changes
Energy Meter
The power changed
Energy Meter
The power meter changed
Energy Meter
Phase [[phase]] is utilized to [[percentageUtilized]]%
Energy summary
The power changed
Energy summary
The power meter changed

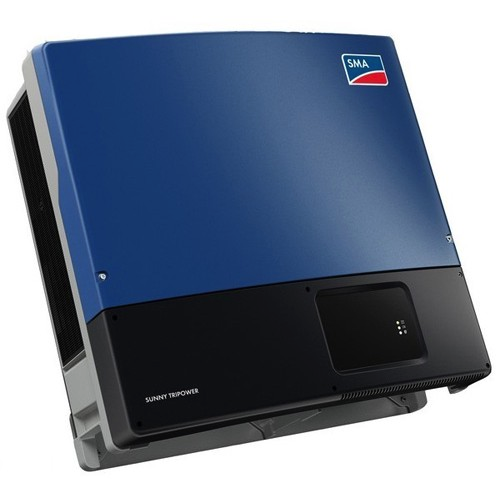

Inverter
The power changed
Inverter
The voltage changed
Inverter
The power meter changed
Inverter
Condition changed to [[inverter_condition]]
Inverter
Operational status changed to [[inverter_status]]
And...
Battery
The battery charging state is ...
Energy Meter
Any phase is utilized above Utilization (%)%
Energy Meter
Phase ... is utilized above Utilization (%)%
Inverter
Daily yield is above Daily yield (kWh)
Inverter
Operational status contains Operational status
Inverter
Power is below Power (W)
Then...
Inverter
Limit the active power output to Power (W)
i
The flash memory of the inverter can be destroyed by too many parametrizations in specific sections.
This event is triggered to protect the inverter hardware by blocking further parametrization.
The event is triggered after 1000 parameter changes. Once triggered the parameter changes are limited to 1 change per 20 operation hours. This is to protect the hardware from final damage.
Example: If the inverter counted 40 operation hours after the event, then 2 further parameter changes / settings are possible.
The number of changes was calculated for the complete lifetime of the inverter.
Widgets
You can add this app’s widgets to your dashboard or homescreen in the mobile app.
Realtime Energy Summary
Support
Having an issue with this app?
Contact the developer here.
What’s new
Version 2.7.8 — Added a hint to the limit of active power output action, informing users of the use of local FLASH storage inside the inverter.
